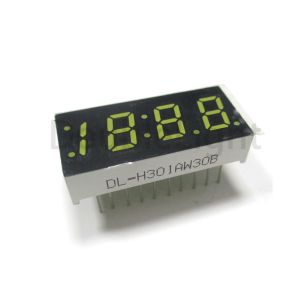

0.32" Triple Half Digit Numeric Displays , 18.8.8 Led Numeric Display Black Surface

Brand Name : DOUBLE LIGHT

Model Number : DL-H301XRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Price : US$ 0.35-0.6. per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 2,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 7 Segment LED Display

Package : 0.32 Inch

Emitted Color : Super bright red

Peak Emission Wavelength : 640nm

Chip Material : GaP

Face color : Black Surface

Forward Voltage @20ma : 1.6-2.8V

Luminous Intensity : 55mcd

size : 30.1*14.0*7.0mm

Datasheet : Update

Contact Now

Datasheet: DL-H301XRB.pdf Emitting color: Super bright red

DL-H301XWB.pdf Emitting color: White

0.32" Triple Half Digit Numeric Displays , 18.8.8 Led Numeric Display Black Surface

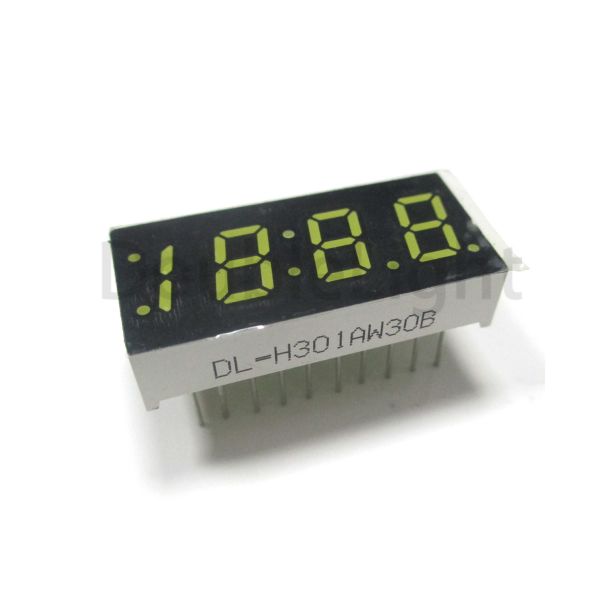

0.32" Triple Half Digit Numeric Displays , 18.8.8 Led Numeric Display Black Surface

0.32" Triple Half Digit Numeric Displays

Features:

  1. 0.32″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL-H301XRB series is a lager 8.30mm (0.32″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL-H301ARB GaAlAs Super Bright Red Common Anode
DL-H301CRB Super Bright Red Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 65 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 40.0 55.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 640 --- nm IF=20mA
Dominant Wavelength λd --- 630 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

7 Segment LED Display Package Dimension:

0.32" Triple Half Digit Numeric Displays , 18.8.8 Led Numeric Display Black Surface

For more details, please contact us.
