2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption

Brand Name : DOUBLE LIGHT

Model Number : DL2-361XBB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 2000pcs

Price : US$ 0.24-0.4per unit (Pieces) depends on the quantity

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 5,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 0.36" Dual Digit Numeric Displays

Emitted Color : Blue

Peak Emission Wavelength : 468-470nm

Chip Material : GaP

Face color : Black Surface

Forward Voltage @20ma : 1.6-2.4V

Luminous Intensity : 10-30mcd

Size : 15.0*14.0*7.2mm

Datasheet : Update

Contact Now

Datasheet: DL2-361XBB.pdf Emitting color:Blue
DL2-361XSRB.pdf Emitting color:Ultra Red

0.36" Dual Digit Numeric Displays

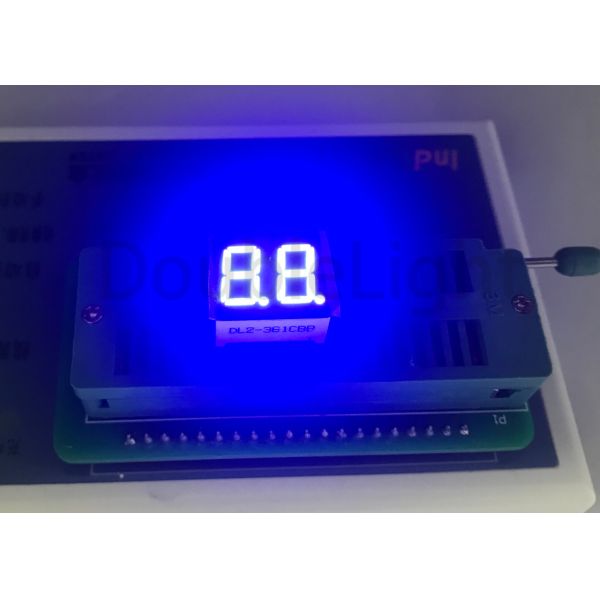

This is 0.36" dual digit Numeric Displays peak emission wavelength 470nm and emitting blue color light( Black surface),source color can be customed.

2 Digit Numeric 7 Segment LED Displays 0.36 Inch GaP Chip Low Power Consumption

Features:

  1. 0.36″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL2-361XBB series is a lager 9.20mm(0.36″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-361ABB InGaN Blue Common Anode
DL2-361CBB Blue Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameter Symbol Max. Unit
Power Dissipation Per Segment PD 95 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Derating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds
Electrical Optical Characteristics at Ta=25℃

Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 10.0 30.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 468 --- nm IF=20mA
Dominant Wavelength λd --- 470 --- nm IF=20mA
Spectral Line Half-Width △λ --- 25 --- nm IF=20mA
Forward Voltage VF --- 3.2 4.0 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

  • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
