29-58mcd 7 Segment LED Displays Customize White Diffused Surface Face Color

Brand Name : DOUBLE LIGHT

Model Number : DL-R1408UYW

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Price : US$ 0.15-0.14 per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 25-30 working days after received your payment

Packaging Details : Dimensions per Unit:0.23 × 0.26 × 0.19Meters • Weight per Unit:2.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : LED Displays

Package : 0.36 Inch

Emitted Color : Yellow

Peak Emission Wavelength : 592nm

Chip Material : GaAlAs

Face color : white Diffused Surface

Forward Voltage @20ma : 2.0-2.6V

Luminous Intensity : 29-58mcd

Contact Now

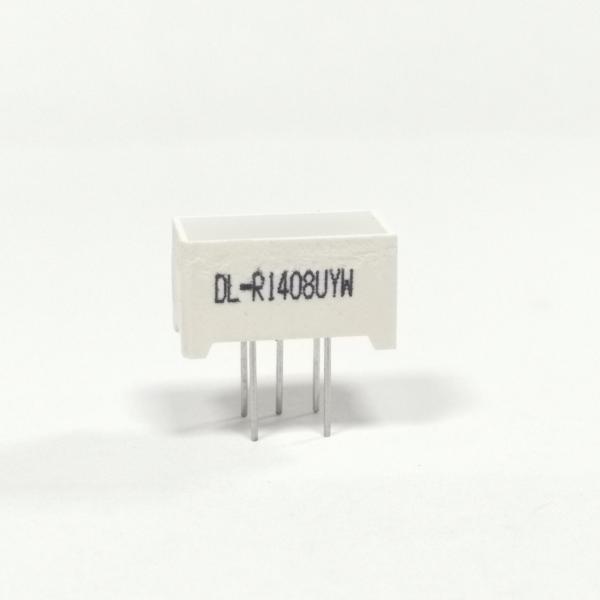

12.5×6.3mm Light Bar Display

Technical Data Sheet

Part No.: DL-R1408UYW

Features:

  1. Industrial standard size.
  2. Low power consumption.
  3. Categorized for luminous intensity.
  4. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL-R1408 series is 12.5×6.3mm light bar display, designed for viewing distances up to 7 meters.
  2. These devices are made with white segments and white surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

part No.

Chip Material

Face Color

Source Color

DL-R1408UYW

GaAlAs

Face Color

 Yellow

Package Dimension:

29-58mcd 7 Segment LED Displays Customize White Diffused Surface Face Color29-58mcd 7 Segment LED Displays Customize White Diffused Surface Face Color

DL-1408UYW

29-58mcd 7 Segment LED Displays Customize White Diffused Surface Face Color

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25mm (.010″) unless otherwise noted.

3. Specifications are subject to change without notice.

  • Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 80 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 30 mA
Dating Linear From 50℃ 0.25 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds
  • Electrical Optical Characteristics at Ta=25℃
Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 29.0 58.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 592 --- nm IF=20mA
Dominant Wavelength λd --- 580 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
Forward Voltage VF --- 2.00 2.60 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V

Notes:

1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

  • Typical Electrical / Optical Characteristics Curves
  • (25℃ Ambient Temperature Unless Otherwise Noted)
