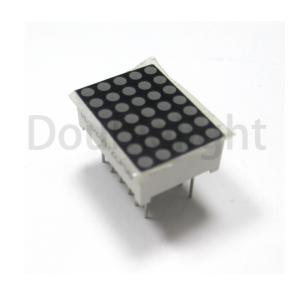

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

Brand Name : DOUBLE LIGHT

Model Number : DL-D20571XPGB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Price : usd0.66-0.75

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 1,000,000pcs per Day

Delivery Time : 20 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : Dot Matrix LED Displays

Emitted Color : Pure Green

Peak Emission Wavelength : 520-525nm

Chip Material : InGaN

Face color : Black Surface

Forward Voltage @20ma : 2.8-3.4V

Luminous Intensity : 80mcd

Datasheet : Update

Contact Now

Datasheet:DL-D20571XPGB.pdf Emitting color: Pure Green

1.9mm (0.7") 5×7 Super Bright Green Dot Matrix LED Displays

​

Features:

  1. 0.7inch (1.9mm) Matrix height.
  2. Colors: Super Bright Green.
  3. Flat package and light weight.
  4. Easy assembly.
  5. High quality and low cost.
  6. High reliable and intensity.
  7. Low power requirement.
  8. The product itself will remain within RoHS compliant version.

Descriptions:

  1. The DL-D20571 series is a large emitting areaLED sources configured in a 35 dots 5*7 matrix array.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white dots and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

Model No.: DL-D20571XPGB


Device Selection Guide:

Model No. Chip Material Face Color Descriptions
DL-D20571APGB GaAlAs Black Row Anode
DL-D20571CPGB Black Row Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 35.0 86.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 520 --- nm IF=20mA
Dominant Wavelength λd --- 525 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
Forward Voltage VF --- 1.80 3.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

LED Display Series, following is another kind of products, 64 dots.

35 Dots Matrix Seven Segment LED Display 1.9mm 5×7 Super Bright Green Dot Matrix

For more details, please contact us.
