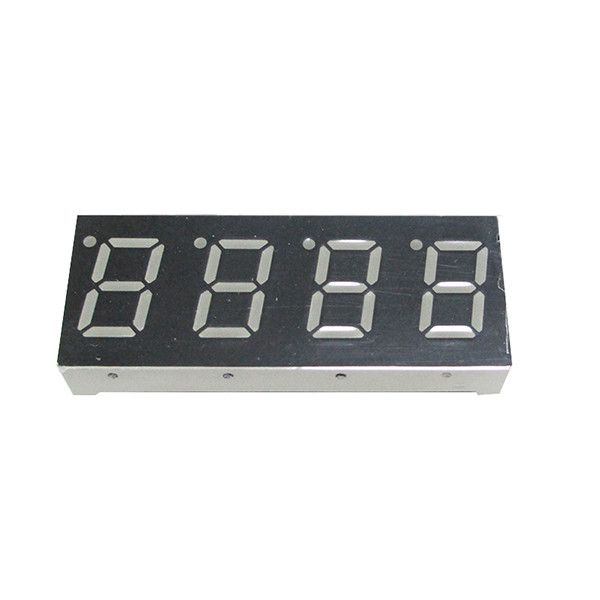

0.40" Quadruple Digit Numeric Displays 4 digit 7 segment display datasheet

Name: 040quot Quadruple Digit Numeric Displays 4 digit 7 segment display datasheet
Brand: DOUBLE LIGHT
Price: 1 USD

Cheap 0.40" Quadruple Digit Numeric Displays 4 digit 7 segment display datasheet for sale

Brand Name : DOUBLE LIGHT

Model Number : DL4-401CRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000PCS

Price : Negotiated

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 0.40 Inch LED Digital Display

Package : Quadruple Digit Numeric Displays

Source Color : Super Bright Red

Peak Emission Wavelength : 660nm

Chip Material : GaAlAs

Forward Voltage @20ma : 1.80-2.40V

Luminous Intensity : 4.0mcd

Contact Now

0.40" Quadruple Digit Numeric Displays 4 digit 7 segment display datasheet

Features:
1. 0.40″ (inch) digit height.
2. Excellent segment uniformity.
3. Sold state reliability.
4. Industrial standard size.
5. Low power consumption.
6. The product itself will remain within RoHS compliant Version.

Descriptions:
1. The DL4-401XRB series is a lager 10.16mm (0.40″) high seven segments display designed for viewing
distances up to 7 meters.
2. These displays provide excellent reliability in bright ambient light.
3. These devices are made with white segments and black surface.

Applications:
1. Audio equipment.
2. Instrument panels.
3. Digital read out display.

Device Selection Guide:

Model No.	Chip Material	Source Color	Description
DL4-401ARB	GaAlAs	Super Bright Red	Common Anode
DL4-401CRB	GaAlAs	Super Bright Red	Common Cathode

Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25 mm (.010″) unless otherwise noted..
3. Specifications are subject to change without notice.

Triple Digit Numeric Displays Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation Per Segment	PD	60	mW
Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current Per Segment	IF	25	mA
Dating Linear From 50℃		0.4	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Triple Digit Numeric Displays Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	2.0	4.0	---	mcd	IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)	I_v-m	---	---	2:1		IF=10mA
Peak Emission Wavelength	λp	---	660	---	nm	IF=20mA
Dominant Wavelength	λd	---	640	---	nm	IF=20mA (Note 2)
Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
Forward Voltage	VF	---	1.80	2.40	V	IF=20mA
Reverse Current	IR	---	---	50	µA	VR=5V

Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
