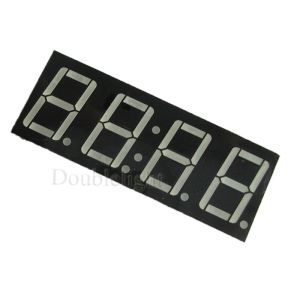

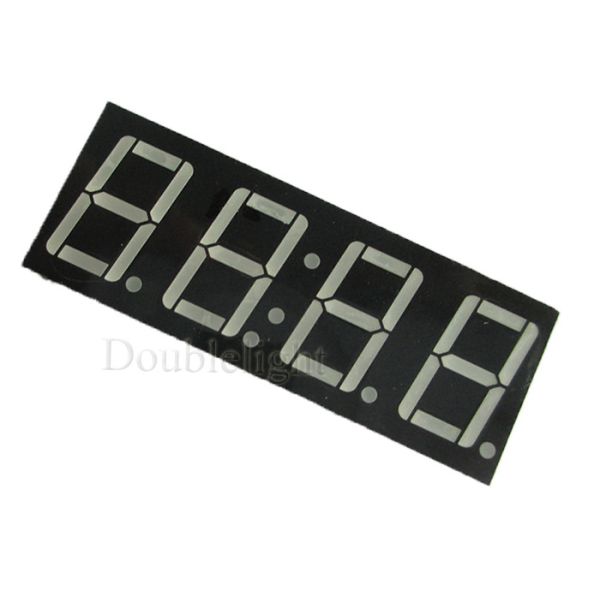

4Bit Digital Tube 7 Segment 0.3 Yellow Green LED Display 32mm Quadruple Digit Numeric Display
4 digit 7 segment led display features:
- The digit height of DL4-303XGB 0.30″ (inch)
- It has an excellent segment uniformity with good chip in it.
- With sold state reliability,it could protect led display.
- Mainly produce led components with automatic production lines,it is industrial standard size to adapt to customer needs
- Low power consumption,power dissipation (per segment) is 85mW
- The product itself will remain within RoHS compliant Version.
seven segment display descriptions:
- The DL4-303XGB series is a lager 7.60 mm (0.30″) high seven segments display designed for viewing
- You can see the uniformity distances up to 7 meters.
- These displays provide excellent reliability in bright ambient light.
- These devices are made with Yellow green segments and black surface.More customer choose black surface for their device.
green 7 segment display applications:
Led display widely used inHome appliances air conditioners, water heaters, refrigerators, LCD screens and fluorescent screens such as elevators,such as:
- Audio equipment
- Instrument panels
- Digital read out display

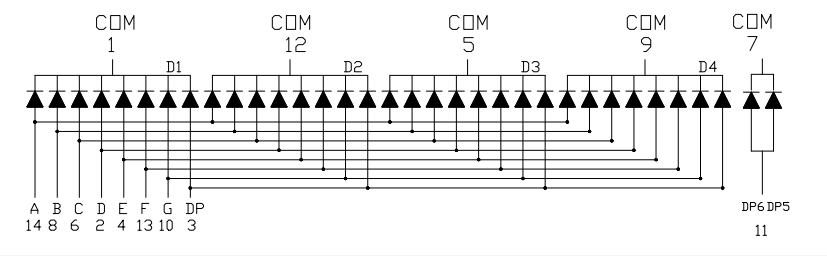

Device Selection Guide:
| Model No. | Chip Material | Source Color | Description |
| DL4-303AGB | GaP | Yellow Green | Common Anode |
| DL4-303CGB | Yellow Green | Common Cathode |
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25 mm (.010″) unless otherwise noted..
3. Specifications are subject to change without notice.
Triple Digit Numeric Displays Absolute Maximum Ratings at Ta=25℃
| Parameters | Symbol | Max. | Unit |
| Power Dissipation (Per Segment) | PD | 85 | mW |
| Peak Forward Current (Per Segment) (1/10 Duty Cycle, 0.1ms Pulse Width) | IFP | 100 | mA |
| Forward Current (Per Segment) | IF | 30 | mA |
| Dating Linear From 25℃ | | 0.25 | mA/℃ |
| Reverse Voltage | VR | 5 | V |
| Operating Temperature Range | Topr | -40℃ to +80℃ |
| Storage Temperature Range | Tstg | -40℃ to +85℃ |
| Soldering Temperature | Tsld | 260℃ for 5 Seconds |
Triple Digit Numeric Displays Electrical Optical Characteristics at Ta=25℃
| Parameters | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Luminous Intensity | IV | 6 | 15 | --- | mcd | IF=20mA (Note 1) |
| Luminous Intensity Matching Ratio (Segment To Segment) | Iv-m | --- | --- | 2:1 | | IF=10mA |
| Peak Emission Wavelength | λp | --- | 568 | --- | nm | IF=20mA |
| Dominant Wavelength | λd | --- | 572 | --- | nm | IF=20mA (Note 2) |
| Spectral Line Half-Width | △λ | --- | 20 | --- | nm | IF=20mA |
| Forward Voltage | VF | --- | 2.20 | 2.80 | V | IF=20mA |
| Reverse Current | IR | --- | --- | 50 | µA | VR=5V |
Notes:
1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.
Double Light which is a professional LED manufacturer mainly produce led components with automatic production lines,
which include THT LEDs, chip LEDs,7 segment led displays, infrared LEDs ,UV led and so on.
