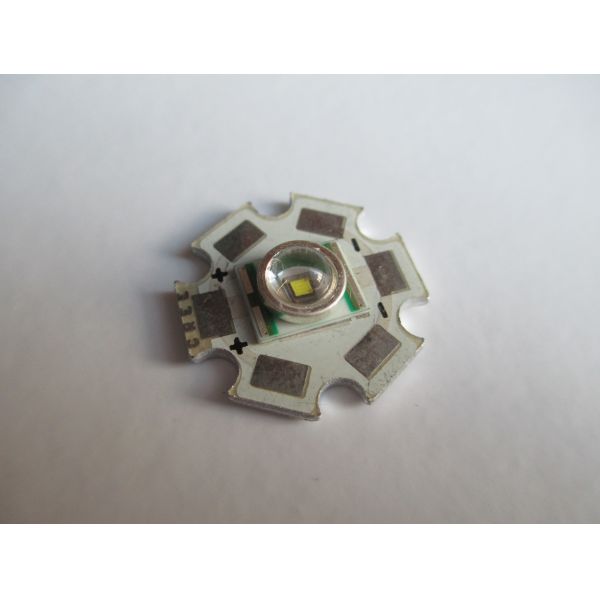

10W High Power white LED Chip Led Light Emitting Diode 5000k-10000k xr-e 114lm with pcb board

Name: 10W High Power white LED Chip Led Light Emitting Diode 5000k10000k xre 114lm with pcb board
Brand: Double LIGHT
Price: 1 USD

Cheap 10W High Power white LED Chip Led Light Emitting Diode 5000k-10000k xr-e 114lm with pcb board for sale

Brand Name : Double LIGHT

Model Number : DL-PCB3535W-10W

Certification : ISO9001:2008,Rosh

Place of Origin : China

MOQ : 1000 PCS

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 1W&3W&10W High Power 3535 White LED

Emitted Color : White Color LED

Test Condition : IF=350ma

Viewing Angle : 120 Deg

Luminous Flux : 120lm

Forward Voltage : 2.8-3.8v

Chip Material : AllnGaP

Color Temperature : 5500-6500k

Contact Now

10w High Power white LED Chip LED emitting diode 5000k-10000k xr-e 114lm with pcb board for medical light

Features:

1. Small package with high efficiency
2. Long operating life.
3. Available in white, green, blue, red, yellow, Amber
4. Typical color temperature: 5500-6500 K.
5. View angle: 120°.
6. Low voltage DC operated.
7. The product itself will remain within RoHS compliant Version.
8. ESD protection.

Applications:

1. Reading lights (car, bus, aircraft).
2. Portable (flashlight, bicycle).
3. Mini_accent/Uplighters/Downlighters/Orientation.
4. Bollards/Security/Garden.
5. Cove/Undershelf/Task.
6. Automotive rear combination lamps.
7. Traffic signaling/Beacons/ Rail crossing and Wayside.
8. Indoor/Outdoor Commercial and Residential Architectural.
9. Edge_lit signs (Exit, point of sale).
10. LCD Backlights/Light Guides.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	3000	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	1000	mA
Forward Current	IF	350/700	mA
Reverse Voltage	VR	5	V
Electrostatic Discharge (HBM)	ESD	1000	V
Operating Temperature Range	Topr	-10℃ to +70℃
Storage Temperature Range	Tstg	-20℃ to +80℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Flux	Φ	100	120	130	lm	If=350mA (Note 1)
Luminous Flux	Φ	200	220	240	lm	If=700mA (Note 1)
Viewing Angle	2θ(1/2)	---	90	---	Deg	(Note 2)
Color Temperature	TC	5500	---	6500	K	If=350/700mA
Forward Voltage	VF	2.80	3.40	3.80	V	If=350/700mA
Reverse Current	IR	---	---	10	µA	VR=5V
