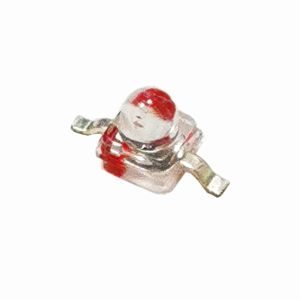

Subminiature Axial Ultra Amber high power led chip Small double - end package

Brand Name : DOUBLE LIGHT

Model Number : DL-R18UAC-1UA20-TR2

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Price : US$ 0.03-0.033per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 10,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 1.8mm Chip LED

Package : 1.8mm

Emitted Color : Ultra Amber

Peak Emission Wavelength : 600-605nm

Chip Material : AlGaInP

Lens Type : Water Clear

Forward Voltage @20ma : 1.8-2.2v

Luminous Intensity : 1000-2000mcd

Viewing Angle : 20 Deg

Contact Now

Features:

  1. 2.15×2.40mm with 1.80mm lens.
  2. Small double-end package.
  3. EIA Std. package.
  4. Mono-color type.
  5. High reliability.
  6. Low forward voltage.
  7. Compatible with automatic placement equipment.
  8. The product itself will remain within RoHS compliant version.

Descriptions:

  1. The R18 SMD taping is much smaller than leaded components. Thus enable smaller board size. Higher packing density. Reduced storage space and finally smaller equipment to be obtained.
  2. Besides, light weight makes them ideal for miniature applications.
  3. Furthermore by automation assembly machines the accuracy is anticipated.

Applications:

  1. Small indicator for indoor applications.
  2. Flat backlight for LCD, switches and symbols.
  3. Indicator and backlight in office equipment.
  4. Indicator and backlight for battery driven equipment.
  5. Indicator and backlight for audio and video equipment.
  6. Automotive: Backlighting in dashboards and switches.
  7. Telecommunication: Indicator and backlighting in telephone and fax.

Part No. Chip Material Lens Color Source Color
DL-R18AC-1A20-TR2 AlGaInP Water Clear Ultra Amber

  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max Unit
Power Dissipation PD 60 mW

Peak Forward Current

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Continuous Forward Current IF 25 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity (Note 1) * IV 450 1400 --- mcd IF=20mA
Viewing Angle (Note 2) * 2θ1/2 --- 20 --- Deg IF=20mA
Peak Emission Wavelength λp --- 610 --- nm IF=20mA
Dominant Wavelength (Note 3) λd --- 605 --- nm IF=20mA
Spectral Line Half-Width △λ --- 30 --- nm IF=20mA
Forward Voltage VF 1.80 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 10 µA VR=5V
Package Dimension:
Subminiature Axial Ultra Amber high power led chip Small double - end package

Subminiature Axial Ultra Amber high power led chip Small double - end package
