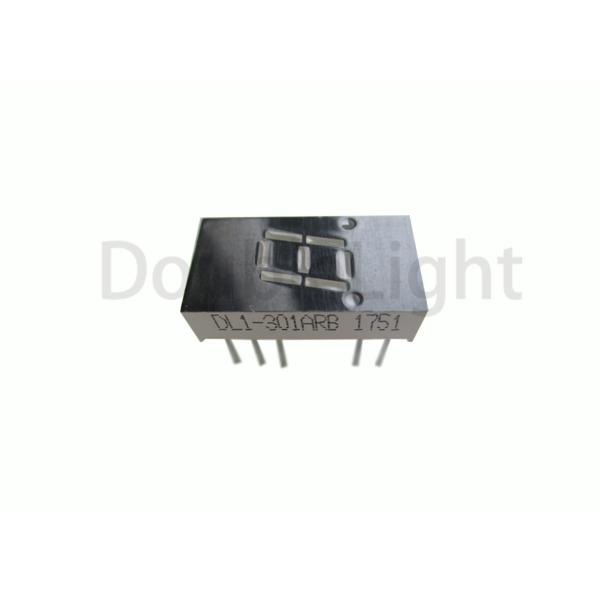

Single Digit Numeric Seven Segment Led Display , 7 Segment Display Part Number 0.30''

Brand Name : DOUBLE LIGHT

Model Number : DL1-301XPGB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 2000pcs

Price : US$ 0.12-0.3per unit (Pieces) depends on the quantity

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 5,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 0.30" Single Digit Numeric 7 Segment LED Displays

Package : 0.30 Inch 7 Segment

Emitted Color : Pure Green

Peak Emission Wavelength : 520nm

Chip Material : GaAlAs

Face color : Black Surface

Forward Voltage @20ma : 2.8-3.8V

Luminous Intensity : 10-25mcd

Datasheet : Update

Contact Now

Datasheet: DL1-301XPGB.pdf Emitting color:Pure Green
DL1-301XRB.pdf Emitting color:super bright red
DL1-301XBB.pdf Emitting color: Blue

DL1-301XGB.pdf Emitting color: Yellow Green

0.30" Single Digit Numeric Displays

This is 0.30" single digit Numeric Displays peak emission wavelength 520nm and emitting pure green color light( Black surface),source color can be customed.

Features:

  1. 0.30″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL1-301 series is a lager 7.8 mm (0.30″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-301APGB InGaN Pure Green Common Anode
BL1-301CPGB Pure Green Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation (Per Segment) PD 95 mW

Peak Forward Current (Per Segment)

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current (Per Segment) IF 30 mA
Dating Linear From 25℃ 0.25 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity IV 10 25 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 520 --- nm IF=20mA
Dominant Wavelength λd --- 525 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 15 --- nm IF=20mA
Forward Voltage VF 2.80 3.20 3.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V


Notes:

  • Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.

The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

Single Digit Numeric Seven Segment Led Display , 7 Segment Display Part Number 0.30''

For more details, please contact us.
