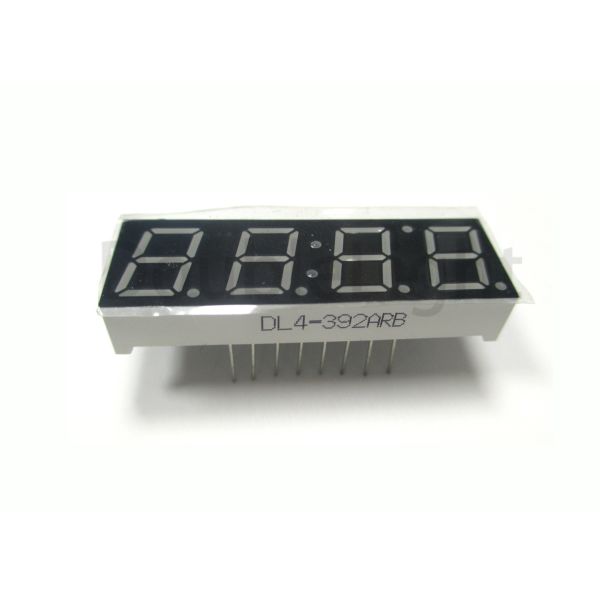

Super Bright Red 7 Segment LED Displays 0.39" Quadruple Digit Numeric Displays 4 Digit

Brand Name : DOUBLE LIGHT

Model Number : DL4-392XRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Price : US$ 0.27-0.45. per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 2,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 7 Segment LED Display

Package : 0.39 Inch

Emitted Color : Super bright red

Peak Emission Wavelength : 640nm

Chip Material : GaP

Face color : Black Surface

Forward Voltage @20ma : 1.6-2.4V

Luminous Intensity : 12-26mcd

size : 40.18*12.8*7mm

Datasheet : Update

Contact Now

Datasheet: DL4-392XRB.pdf Emitting color: Super bright red

0.39" Quadruple Digit Numeric Displays

Features:

  1. 0.39″ (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL4-392XXX series is a lager 9.90mm (0.39″) high seven segments display designed for
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL4-392ARB GaAlAs Super Bright Red Common Anode
DL4-392CRB Super Bright Red

Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 12.0 24.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 640 --- nm IF=20mA
Dominant Wavelength λd --- 630 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

7 Segment LED Display Package Dimension:
