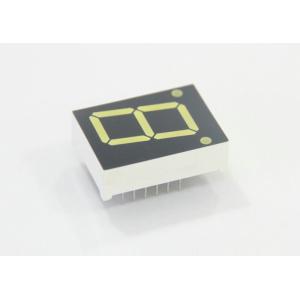

Anode CATHODE FND Numeric 7 Segment LED Displays Single Digit Display 0.30 Inch Red Green Blue White

Brand Name : DOUBLE LIGHT

Model Number : DL1-301XRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 10-15 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 7 Segment LED Display

Package : 0.30 Inch

Emitted Color : Super Bright Red

Peak Emission Wavelength : 640nm

Chip Material : GaAlAs

Face color : Black Surface

Forward Voltage @20ma : 2.0V

Luminous Intensity : 3-5mcd

Contact Now


Anode CATHODE FND Numeric LED Single Digit Display 0.30 Inch Red Green Blue White

0.3 inch Single Digit LED Display -led modulee
Features

0.30 inch (7.62mm) digit height
Qualified according to JEDEC moisture sensitivity Level 2a.
RoHS compliant.
Low power consumption.
Easy mounting on P.C. board .

Various models:1~6 numeric LED display are available
Various emitting colors:red,green yellow,orange,white,blue,amber.
Advantages:long life,enegy saving,even luminance,good stability
Customized requirements can be meet

Descriptions

• 0.30 Inch Single Digit SMD Display
• DL1-301ARB is Common Anode
• DL1-301CRB is Common Cathode
• Emitting Color:Pure Green, Yellow Green, Yellow, Amber, Orange,

Red, Deep Red.

• Standard: Black face, white segment..



Device Selection Guide:

Model No.Chip MaterialSource ColorDescription
DL1-301ARBGaAlAsUltra RedCommon Anode
DL1-301CRBUltra RedCommon Cathode

  1. Absolute Maximum Ratings at Ta=25℃

ParametersSymbolMax.Unit
Power Dissipation Per SegmentPD60mW

Peak Forward Current Per Segment
(1/10 Duty Cycle, 0.1ms Pulse Width)

IFP100mA
Forward Current Per SegmentIF25mA
Dating Linear From 50℃ 0.4mA/℃
Reverse VoltageVR5V
Operating Temperature RangeTopr-40℃ to +80℃
Storage Temperature RangeTstg-40℃ to +85℃
Soldering TemperatureTsld260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

ParametersSymbolMin.Typ.Max.UnitTest Condition
Luminous IntensityIv1.01.8---mcdIF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment)Iv-m------2:1 IF=10mA
Peak Emission Wavelengthλp---660---nmIF=20mA
Dominant Wavelengthλd---640---nmIF=20mA (Note 2)
Spectral Line Half-Width△λ---20---nmIF=20mA
Forward VoltageVF---1.802.40VIF=20mA
Reverse CurrentIR------50µAVR=5V


7 Segment LED Display Package Dimension:

Anode CATHODE FND Numeric 7 Segment LED Displays Single Digit Display 0.30 Inch Red Green Blue White

DL1-301ARB DL1-301CRB

Anode CATHODE FND Numeric 7 Segment LED Displays Single Digit Display 0.30 Inch Red Green Blue White
