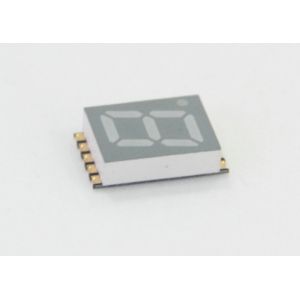

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color

Brand Name : DOUBLE LIGHT

Model Number : DL2-8011XRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 10-15 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 7 Segment LED Display

Package : 0.8 Inch

Emitted Color : Red

Peak Emission Wavelength : 660nm

Chip Material : GaP

Face color : Black Surface

Forward Voltage @20ma : 1.8V

Luminous Intensity : 3-5mcd

Contact Now

​7 Segment LED DisplayKey Specifications/Special Features:

  1. Features:
  1. 0.80″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant version.
  7. Low current operation.
  8. 8.Low power consumption.
  9. 9.High brightness.
  10. 10.Industrial standard size.
    Easy mounting on P.C. board or sockets.
    Face color : black / gray .
    Polarity : common anode / cathode

  1. Descriptions:
  1. The DL2-801XRB series is a lager 20.30mm(0.80″) high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

  1. Applications:
  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Device Selection Guide:

Model No. Chip Material Source Color Description
DL2-801ARB GaAlAs Super Bright Red Common Anode
DL2-801CRB Super Bright Red Common Cathode

  1. Absolute Maximum Ratings at Ta=25℃
Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 60 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 2.0 4.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 660 --- nm IF=20mA
Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 1.80 2.40 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

7 Segment LED Display Package Dimension:

Dual Digits Alpha Numeric Digital Led 15 Segment Led Display Single Color

DL2-801CRB
