Common anode 0.39 inch 7 Segment LED Displays 1 digit surface mount SMD LED display

Product Categories
DOUBLE LIGHT ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

Common anode 0.39 inch 7 Segment LED Displays 1 digit surface mount SMD LED display

Brand Name : DOUBLE LIGHT

Model Number : DL1-802XRB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 10-15 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : 7 Segment LED Display

Package : 0.8 Inch

Emitted Color : Red

Peak Emission Wavelength : 640-660nm

Chip Material : GaAlAs

Face color : Black Surface

Description : Common Cathode

Test Condition : IF=20mA

Contact Now

7 Segment Display Red Green Blue White FND Numeric LED Single Digit Display 0.8 Inch

What Specifications of our LED display components, LED display?
1. 0.28Inch -0.8 Inch 1 digit
2. Emitted color: Red 620nm-635nm, Yellowish-Green 565nm-575nm,
Orange 600nm-610nm, Yellow 585nm-595nm,
Blue 465nm-475nm, Green 515nm-525nm etc
3. DIP 12Pins, 14Pins; Epoxy: White, Water Clear or customized color

Pins Layout & Circuit diagram


What Features & Application of NEW SHINE LED display components matrix?
Application:
1) Semi-outdoor/outdoor or indoor using, elevators/lift, led strip display, clock display and other different display areas of digital instruments, display screen modules, mechanical & medical equipments.
2) Customized LED Panel Displays: Application for household appliance, special using LED

Features:

  1. 0.80" (inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL1-802XRB series is a lager 20.40mm (0.80") high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.


Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-802ARB GaAlAs Super Bright Red Common Anode
DL1-802CRB Super Bright Red Common Cathode

Absolute Maximum Ratings at Ta=25℃

​

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 100 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 5.0 10.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Peak Emission Wavelength λp --- 660 --- nm IF=20mA
Dominant Wavelength λd --- 640 --- nm IF=20mA (Note 2)
Spectral Line Half-Width △λ --- 20 --- nm IF=20mA
Forward Voltage VF --- 2.20 2.80 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

LED Display Package Dimension:

Common anode 0.39 inch 7 Segment LED Displays 1 digit surface mount SMD LED display

DL1-802ARB

Common anode 0.39 inch 7 Segment LED Displays 1 digit surface mount SMD LED display



Product Tags:

led seven segment display



brightest smd led chip


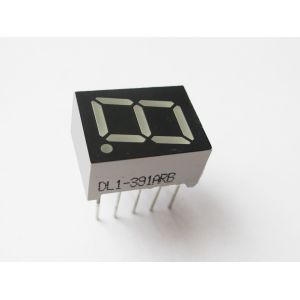

Cheap Common anode 0.39 inch 7 Segment LED Displays 1 digit surface mount SMD LED display for sale
