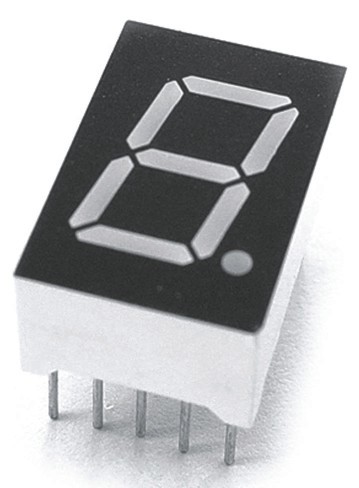

Yellow Green 0.5 inch single digit 7 segment numeric led display Common Anode

Yellow Green 0.5 inch single digit 7 segment numeric led display Common Anode

single digit led display

Red: 620 - 630nm Red: 70-90 mcd (1.8-2.3v / 20mA)
High red: 635 - 640 nm High red: 50-70 mcd (1.8-2.3v / 20mA)
Green: 565 - 575 nm Green: 70-90 mcd (1.8-2.3v / 20mA)
Yellow: 585 - 595 nm Yellow: 40-50 mcd (1.8-2.3v / 20mA)
Amber: 600 - 605nm Amber: 30 mcd (1.8-2.3v / 20mA)
Blue: 460 - 475nm Blue: 40-50 mcd (3.0-3.3v / 20mA)
Pure green: 515 - 525nm Pure green: 180-250 mcd (3.0-3.3v / 20mA)
White : 2700-6500K White: 100-180 mcd (3.0-3.3v / )

Features:

1. 0.50″(inch) digit height.
2. Excellent segment uniformity.
3. Sold state reliability.
4. Industrial standard size.
5. Low power consumption.
6. The product itself will remain within RoHS compliant Version.

Descriptions:

1. The DL1-501 series is a lager 12.70mm(0.50") high seven segments display designed for viewing distances up to 7 meters.
2. These displays provide excellent reliability in bright ambient light.
3. These devices are made with white segments and black surface.

Device Selection Guide:

1. Absolute Maximum Ratings at Ta=25℃

1. Parameters	Symbol	Max.	Unit
   Power Dissipation (Per Segment)	PD	84	mW
   Peak Forward Current (Per Segment) (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
   Forward Current (Per Segment)	IF	30	mA
   Dating Linear From 25℃		0.25	mA/℃
   Reverse Voltage	VR	5	V
   Operating Temperature Range	Topr	-40℃ to +80℃
   Storage Temperature Range	Tstg	-40℃ to +85℃
   Soldering Temperature	Tsld	260℃ for 5 Seconds

   Electrical Optical Characteristics at Ta=25℃

   Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
   Luminous Intensity	IV	1.2	2.0	---	mcd	IF=20mA (Note 1)
   Luminous Intensity Matching Ratio (Segment To Segment)	Iv-m	---	---	2:1		IF=10mA
   Peak Emission Wavelength	λp	---	568	---	nm	IF=20mA
   Dominant Wavelength	λd	---	572	---	nm	IF=20mA (Note 2)
   Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
   Forward Voltage	VF	---	2.20	2.80	V	IF=20mA
   Reverse Current	IR	---	---	50	µA	VR=5V

   Notes:

2. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

single digit led display Package Dimension:

DL1-501AYGB DL1-501CYGB
