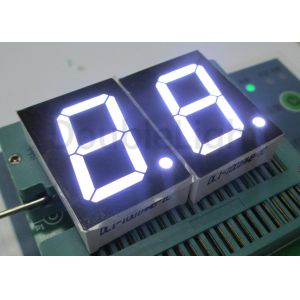

Single Numeric Digit LED Display 1.00 Inch 1 Digit White / Red Color Vertical Byte 2.54cm

Brand Name : DOUBLE LIGHT

Model Number : DL1-1001XWB-1C

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 2000pcs

Price : US$ 0.3-0.5 per unit (Pieces) depends on the quantity

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 5,000,000pcs per Day

Delivery Time : 7-10 working days after payment received

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : DIP LED Display

Package : 1.00 Inch

Emitted Color : White

Luminous Intensity (Per Segment) : 15-35mcd

Forward Voltage (Per Segment) : 2.0-4.0v

Size : 24.0*34.0*10.5mm

Datasheet : Update

Contact Now


Datasheet:DL1-1001XWB-1C.pdf Emitting color: White

DL1-1001XRB.pdf Emitting color: Super bright red

1.0 Inch Single Digit Numeric Displays

Source color can be customed.

Features:

  1. 1.0″(inch) digit height.
  2. Excellent segment uniformity.
  3. Sold state reliability.
  4. Industrial standard size.
  5. Low power consumption.
  6. The product itself will remain within RoHS compliant Version.

Descriptions:

  1. The DL1-1001 series is a lager 25.4mm(1.0") high seven segments display designed for viewing distances up to 7 meters.
  2. These displays provide excellent reliability in bright ambient light.
  3. These devices are made with white segments and black surface.

Applications:

  1. Audio equipment.
  2. Instrument panels.
  3. Digital read out display.

Single Numeric Digit LED Display 1.00 Inch 1 Digit White / Red Color Vertical Byte 2.54cm

Device Selection Guide:

Model No. Chip Material Source Color Description
DL1-1001AWB-1C InGaN White Common Anode
DL1-1001CWB-1C White Common Cathode

Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation Per Segment PD 95 mW

Peak Forward Current Per Segment

(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current Per Segment IF 25 mA
Dating Linear From 50℃ 0.4 mA/℃
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃
Soldering Temperature Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 15.0 30.0 --- mcd IF=20mA (Note 1)
Luminous Intensity Matching Ratio (Segment To Segment) Iv-m --- --- 2:1 IF=10mA
Chromaticity Coordinates X --- 0.30 --- nm IF=20mA
Y --- 0.31 --- nm IF=20mA (Note 2)
Forward Voltage VF --- 3.3 4.00 V IF=20mA
Reverse Current IR --- --- 50 µA VR=5V

Notes:

  1. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
  2. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

For more details, please contact us.
