3mm LED Holders RGB Dip Indicator Led Diode fixed in plastic holder housing led lamp for led dash indicator light

Product Categories
DOUBLE LIGHT ELECTRONICS TECHNOLOGY CO.,LTD
Contact Now

3mm LED Holders RGB Dip Indicator Led Diode fixed in plastic holder housing led lamp for led dash indicator light

Brand Name : Double Light

Model Number : DL-H30D-1RYBD

Certification : ISO9001:2008,Rosh

Place of Origin : China

MOQ : 1000 PCS

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 15-20 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Price : Negotiated

Product Name : indicator LED holder

Emitted Color : Super Red, yellow, blue

Peak Emission Wavelength : 660nm 590nm 465nm

Forward Voltage @20ma : 1.5-2.4V 1.60-2.60V 2.8-4.0V

Viewing Angle : 30 Deg

Luminous Flux : 50-100mcd 30-65mcd 140-380mcd

Lens Color : Red Diffused,Yellow Diffused,Blue Diffused

Application : indicator light

Contact Now

3mm LED Holders RGB Dip Indicator Led Diode fixed in plastic holder housing led lamp for led dash indicator light

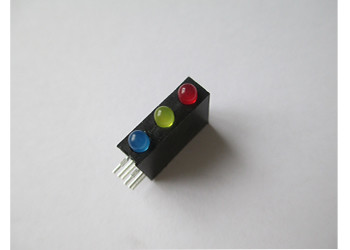

tri-color LED 3mm dip LED diode fixed in a plastic holder indicator LED, red, yellow, blue

  • Features:
  1. Low Power consumption.
  2. High efficiency and low cost.
  3. Good control and free combinations on the colors of LED lamps.
  4. Good lock and easy to assembly.
  5. Stackable and easy to assembly.
  6. Stackable vertically and easy to assembly.
  7. Versatile mounting on P.C board or panel.
  8. Stackable horizontally and easy to assembly.
  9. The product itself will remain within RoHS compliant version.
  • Descriptions:
  1. ARRAY=Plastic Holder + Combinations of Lamps.
  2. The array will easily mount be applicable on any panel up to.
  • Applications:
  1. Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.
Part No. Chip Material Lens Color Source Color
DL-H30D-1RYBD R GaAlAs Red Diffused Super Red
Y AlGaInP Yellow Diffused Yellow
B InGaN Blue Diffused Blue


Absolute Maximum Ratings at Ta=25℃

Parameters Symbol Max. Unit
Power Dissipation PD 100 mW

Peak Forward Current
(1/10 Duty Cycle, 0.1ms Pulse Width)

 IFP 100 mA
Forward Current IF 30 mA
Reverse Voltage VR 5 V
Operating Temperature Range Topr -40℃ to +80℃
Storage Temperature Range Tstg -40℃ to +85℃

Soldering Temperature
[4mm (.157″) From Body]

 Tsld 260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters Symbol Emitting Color Min. Typ. Max. Unit Test Condition
Luminous Intensity IV Super Red 50 100 --- mcd

IF=20mA
(Note 1)
Yellow 30 65 ---
Blue 140 380 ---
Viewing Angle 2θ1/2 Super Red --- 30 --- Deg

IF=20mA
(Note 2)
Yellow --- 30 ---
Blue --- 30 ---
Peak Emission Wavelength λp Super Red --- 660 --- nm

Measurement
@Peak
Yellow --- 590 ---
Blue --- 465 ---
Dominant Wavelength λd Super Red --- 640 --- nm

IF=20mA
(Note 3)
Yellow --- 592 ---
Blue --- 470 ---
Spectral Line Half-Width △λ Super Red --- 45 --- nm
Yellow --- 15 ---
Blue --- 25 ---
Forward Voltage VF Super Red 1.50 2.00 2.40 V IF=20mA
Yellow 1.60 2.20 2.60
Blue 2.80 3.20 4.00
Reverse Current IR Super Red --- --- 10 µA VR=5V
Yellow
Blue
