Piranha Square Led Light Emitting Diode 5mm Dome 4 Lead Warm White Super Flux

Brand Name : DOUBLE LIGHT

Model Number : DL-U50W35B

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000pcs

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 10,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : Square led With 5mm Dome 4 Lead

Package : piranha led

Emitted Color : Blue、Red、Yellow、Green、RGB led emitting diode

Chip Material : InGaN、AlGaInP

Lens Type : Water Clear

Forward Voltage @20ma : 3-3.4v

Luminous Intensity : 3000-4000mcd

Viewing Angle : 80 Deg

Contact Now

piranha led Square led With 5mm Dome 4 Lead Warm White LED super flux led emitting diode

Part No. Chip Material Lens Color Source Color
DL-U50W35B InGaN Water Clear

Warm White

  • Features:
  1. Fewer LEDs required.
  2. Low profile.
  3. Lowers lighting system cost.
  4. Super flux output.
  5. Viewing angle=80°.
  6. Emission color coordinates: X=0.40, y=0.43.
  7. The product itself will remain within RoHS compliant Version.
  • Descriptions:
  1. This revolutionary package design allows the light designer to reduce the number of LEDs required and provide a more uniform and unique illuminated appearance than with other LED solutions.
  2. The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light and provide the desired light appearance.
  3. The white LED which was fabricated using a blue LED and a phosphor, and the phosphor is excited by blue light and emits yellow fluorescence the mixture of blue light and yellow light results in white emission.
  4. Utilizing advanced InGaN chip technology.
  • Applications:
  1. Automotive exterior lighting.
  2. Electronic signs and signals.
  3. Special lighting application.

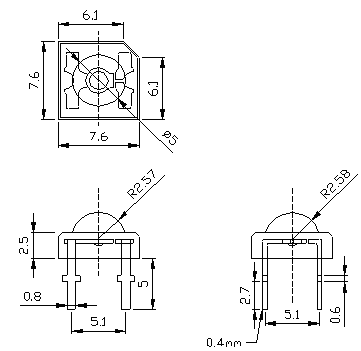

  • Package dimensions:

Piranha Square Led Light Emitting Diode 5mm Dome 4 Lead Warm White Super Flux

  • Electrical Optical Characteristics at Ta=25℃
Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Iv 3000 --- 4000 mcd If=20mA (Note 1)
Viewing Angle 2θ(1/2) --- 80 --- Deg (Note 2)
Chromaticity Coordinates X --- 0.40 --- IF=20mA (Note 3)
Y --- 0.43 ---
Color Temperature TC 3500 --- 4000 K IF=20mA
Forward Voltage VF 3.0 --- 3.4 V IF=20mA
Reverse Current IR --- --- 5 µA VR=5V
  • Company introduction:

HongKong Double Light Electronics was founded in 2005 as a professional LED manufacturer located in Shenzhen, China. We mainly produce a wide range of products with automatic production lines, which include piranha led, 5mm led, lamp led, THT LEDs, chip LEDs, LED displays, infrared LEDs, dot matrix, LCD backlights and LED lighting fixtures.

Piranha Square Led Light Emitting Diode 5mm Dome 4 Lead Warm White Super Flux


Product Tags:

light emission diode



led emitting diode

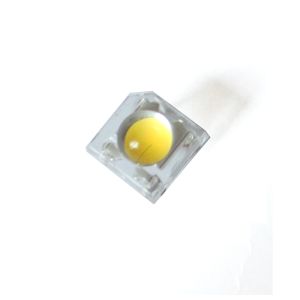

Cheap Piranha Square Led Light Emitting Diode 5mm Dome 4 Lead Warm White Super Flux for sale
