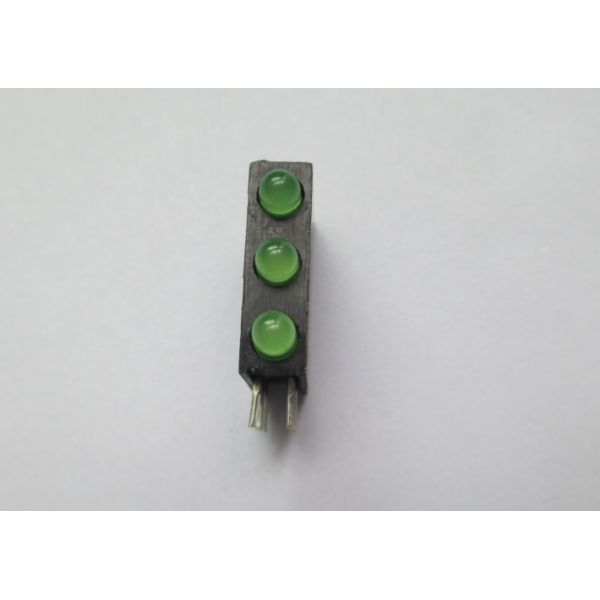

Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing

Name: Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing
Brand: Double Light
Price: 0.1 USD

Cheap Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing for sale

Brand Name : Double Light

Model Number : DL-H30RYGD

Certification : ISO9001:2008,Rosh

Place of Origin : China

MOQ : 1000 PCS

Price : USD 0.1-0.13/PCS

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 15,000,000pcs per Day

Delivery Time : 5-7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : LED Light Components

Emitted Color : Yellow Green

Chip Material : AllnGaP

Lens Type : Green Diffused

Peak Emission Wavelength : 660nm

Forward Voltage @20ma : 2.0-2.4V

Viewing Angle : 30 Deg

Luminous Flux : 50mcd

Contact Now

Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing

RED LED Light Components

Primary Competitive Advantages:
Green Product
Packaging
Product Features
Product Performance
Reputation

Features

Pre-trimmed leads for PC mounting
Black case enhances contrast ratio
Wide viewing angle
High reliability life measured in years
Housing UL rating: 94V-0
Housing material: PPA
High temperature-resistant housing
High glass transition temperature epoxy
Package: 500pcs/reel
Moisture sensitivity level: level 3
Compliant with RoHS Directive

◇ Low power consumption.
◇ High efficiency and low cost.
◇ Good control and free combinations on the colors of LED lamps.
◇ Good lock and easy to assembly.
◇ Stackable and easy to assembly.
◇ Stackable vertically and easy to assembly.
◇ Versatile mounting on P.C board or panel.
◇ Stackable horizontally and easy to assembly.
◇ The product itself will remain within RoHS compliant version.
◇ ARRAY=Plastic Holder + Combinations of Lamps.
◇ The array will easily mount be applicable on any panel up to.
◇ Used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation	PD	78	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current	IF	30	mA
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Lead Soldering Temperature [4mm (.157″) From Body]	Tsld	260℃ for 5 Seconds

Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity (Note 1)*	IV	13	30	---	mcd	IF=20mA
Viewing Angle*	2θ_1/2	---	60	---	Deg	(Note 2)
Peak Emission Wavelength	λp	---	640	---	nm	IF=20mA
Dominant Wavelength	λd	---	630	---	nm	IF=20mA
Spectrum Radiation Bandwidth	Δλ	---	45	---	nm	IF=20mA
Forward Voltage	VF	1.60	2.00	2.60	V	IF=20mA
Reverse Current	IR	---	---	10	µA	V_R=5V

Notes:

1. Luminous Intensity Measurement allowance is ± 10%.

2. θ_1/2is the off-axis angle at which the luminous intensity is half the axial luminous intensity.

3. The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device

Package Dimension:

Double Light 3mm Right Angle Indicator led emitting diode with High Temperature resistant Housing
