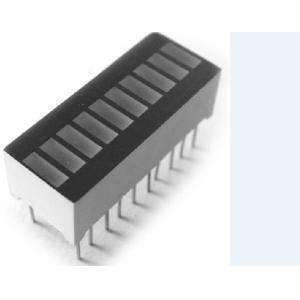

10 segment LED Bar Graph LED Digital Display with High Light Red Color

Name: 10 segment LED Bar Graph LED Digital Display with High Light Red Color
Brand: DOUBLE LIGHT
Price: 0.27 USD

Cheap 10 segment LED Bar Graph LED Digital Display with High Light Red Color for sale

Brand Name : DOUBLE LIGHT

Model Number : DLL-R1025RB

Certification : ISO9001:2008/ROHS

Place of Origin : China (mainland)

MOQ : 1000PCS

Price : US$ 0.27-0.28. per unit (Pieces)

Payment Terms : Telegraphic Transfer in Advance (Advance TT, T/T)

Supply Ability : 8,000,000pcs per Day

Delivery Time : 7 working days after received your payment

Packaging Details : Dimensions per Unit:0.28 × 0.2 × 0.13 Meters • Weight per Unit:3.5 Kilograms • Units per Export Carton:40000 • Export Carton Dimensions L/W/H: 0.45 × 0.28 × 0.27 Meters • Export Carton Weight:14.2 Kilograms

Product Name : LED Digital Display

Package : LED Bar Display

Emitted Color : Super Bright Red

Peak Emission Wavelength : 660nm

Chip Material : GaAlAs

Face color : black surface

Forward Voltage @20ma : 2.8-3.0v

Luminous Intensity : 5-7mcd

Contact Now

10 segment LED Bar Graph LED Digital Display with High Light Red Color

10 Segment Light Bars Displays

Features:

Industrial standard size.
Low power consumption.
Categorized for luminous intensity.
The product itself will remain within RoHS compliant Version.

Specifications

7 Segment Display
1. Size:0.25" to 20"
2. Digits:one digit to six digits.
3. High Brightness
4. ROHS

Luminous Intensity
Red: 50 mcd to 60 mcd
hight bright red: 70mcd to 80mcd
blue: 40mcd to 50mcd
pure green: 180mcd to 200mcd
yellow: 14mcd to50mcd
amber: 30mcd

purple:

orange:

1) LED numeric & alphanumeric displays for indoor, semi-outdoor and outdoor application.
2) Digit height: from 0.28" to 20" (0.28", 0.3", 0.36", 0.39", 0.4", 0.5",0.52", 0.56",0.8", 1.0", 1.2", 1.5", 1.8", 2.3", 3.0", 4.0", 5.0", 8.0", 10", 12", 16", 20".)
3) 1-digit, 2-digits, 3-digits, 4-digits, 6-digits available with black or grey face.
4) Various emitting colors: red(640nm),yellow green (572nm),pure green(525nm),yellow(590nm),blue(430nm), pure blue(470nm).
5) Applications: elevator/lift, bank exchange rate display, led clock display, led oil price display for gas satation and other different display areas of equipment/machine.

Device Selection Guide:

Part No.	Chip Material	Face Color	Source Color
DLL-R1025RB	GaAlAs	Black Diffused	Super Bright Red

Absolute Maximum Ratings at Ta=25℃

Parameters	Symbol	Max.	Unit
Power Dissipation Per Segment	PD	60	mW
Peak Forward Current Per Segment (1/10 Duty Cycle, 0.1ms Pulse Width)	IFP	100	mA
Forward Current Per Segment	IF	25	mA
Dating Linear From 50℃		0.4	mA/℃
Reverse Voltage	VR	5	V
Operating Temperature Range	Topr	-40℃ to +80℃
Storage Temperature Range	Tstg	-40℃ to +85℃
Soldering Temperature	Tsld	260℃ for 5 Seconds

10 Segment Light Bars Displays Electrical Optical Characteristics at Ta=25℃

Parameters	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	6.0	12.0	---	mcd	IF=20mA (Note 1)
Peak Emission Wavelength	λp	---	660	---	nm	IF=20mA
Dominant Wavelength	λd	---	640	---	nm	IF=20mA (Note 2)
Spectral Line Half-Width	△λ	---	20	---	nm	IF=20mA
Forward Voltage	VF	---	1.80	2.40	V	IF=20mA
Reverse Current	IR	---	---	50	µA	VR=5V

Notes:

Luminous intensity is measured with a light sensor and filter combination that approximates the CIE eye-response curve.
The dominant wavelength (λd) is derived from the CIE chromaticity diagram and represents the single wavelength which defines the color of the device.

10 Segment Light Bars Displays Package Dimension:
